Description

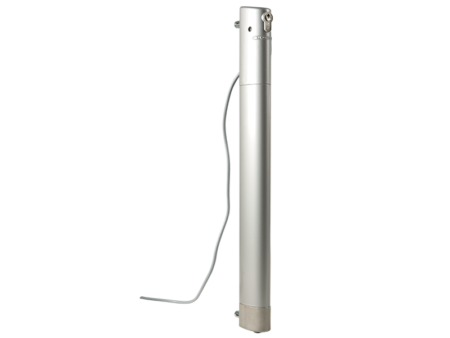

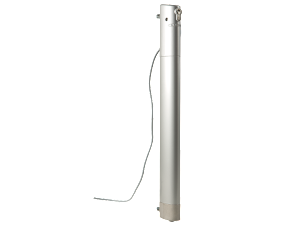

ELECTRADROP
Electric dropbolt
Electric 24 V dropbolt with 115 mm throw for safe locking of automated gates. By securing your gate with a dropbolt you disburden the electric gate motors.
- Vandal resistant, powdercoated aluminium housing
- Easy mounting with Quick-Fix
- To be connected to the warning light on automated gates (min 3 sec prewarning signal)
- Mechanical release possible (by key) in case of emergency or power failure
- Fitted with relay for dropbolt detection
- Obstacle detection with automatic stop of the dropbolt
- Throw: 115 mm
- Dropbolt diameter: 20 mm
- For gate profiles: 40 mm or more
- Vertical mounting
- Consumption: 11 W / Standby: 0,2 W
- 5 m cable included
- Included: 3012V21Z cylinder
- Optional: 24 V DC power supply
